As electrical demands grow across industrial and urban landscapes, the 33kV compact substation has emerged as a dependable and space-efficient solution. Designed to handle medium-to-high voltage distribution with safety and minimal footprint, this prefabricated unit integrates multiple components—high-voltage switchgear, power Transformer guide, and low-voltage distribution panel—within a weatherproof enclosure.
What Is a 33kV Compact Substation?
A 33kV compact substation, also referred to as a package substation or kiosk substation, is a modular electrical unit that steps down voltage from 33kV to usable levels such as 11kV or 0.4kV. It includes:
- HV switchgear (like a ring main unit) for grid input
- Power transformer, oil-immersed or dry-type, for voltage conversion
- LV distribution board for final power distribution and circuit protection
This self-contained design reduces installation time, enhances safety, and ensures compatibility with smart grid systems.
Applications of 33kV Compact Substations
Thanks to their scalability and robust design, 33kV compact substations are widely used in:
- Power utilities: As distribution hubs in 33kV networks
- Large-scale industrial plants: For machinery, automation lines, and process equipment
- Urban infrastructure: Supplying electricity to metro systems, hospitals, airports, and high-rise buildings
- Renewable energy sites: Often used in solar and wind farms as part of the step-down infrastructure
- Smart cities: Supporting underground cable networks and energy-efficient architectures
Industry Background and Market Trends
With global power infrastructure shifting toward decentralization and renewable integration, the demand for compact substations is growing steadily. According to a 2023 report from the International Energy Agency (IEA), modular substations are instrumental in the modernization of utility networks due to their fast deployment and minimal site preparation.
IEEE’s recent publications have also emphasized the role of compact substations in enhancing power quality, reliability, and fault isolation in medium voltage systems.
Meanwhile, manufacturers like ABB, Schneider Electric, and Siemens have been promoting modular designs aligned with IEC 62271 and IEEE C37.20.1 standards, which enhance global interoperability and safety compliance.
Technical Specifications – Typical Configuration for a 33kV Compact Substation
| Parameter | Specification |
|---|---|
| Rated Voltage (Primary) | 33kV |
| Rated Voltage (Secondary) | 11kV / 0.4kV |
| Rated Capacity | 500 kVA – 2500 kVA |
| Transformer Type | Oil-immersed / Dry-type |
| Cooling Type | ONAN / ANAF |
| Protection Class | IP44 to IP54 |
| Frequency | 50Hz / 60Hz |
| Standards | IEC 62271-202, IEEE C57.12.28 |
| Installation Type | Outdoor / Indoor |

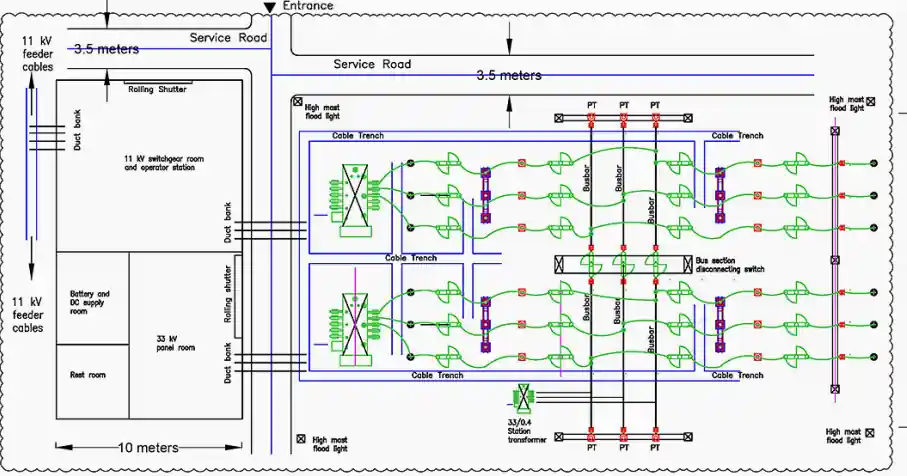

Comparison with Conventional Substations
| Feature | 33kV Compact Substation | Traditional Outdoor Substation |
|---|---|---|
| Installation Time | Short (plug-and-play) | Long (requires civil work) |
| Space Requirements | Low (modular) | High |
| Safety | High (fully enclosed) | Moderate |
| Relocation Possibility | Easy to relocate | Fixed infrastructure |
| Maintenance Needs | Lower | Higher |
These advantages make 33kV compact substations especially appealing for rapidly expanding infrastructure projects or remote applications where conventional substations are less feasible.
Purchasing Advice and Selection Tips
Selecting the right 33kV compact substation requires a close look at:
- Load requirements: Match capacity (e.g., 1000 kVA vs. 2000 kVA) to peak demand
- Site conditions: For coastal, dusty, or industrial zones, ensure appropriate IP ratings and corrosion-resistant enclosure materials
- Cooling preference: Oil-immersed units offer higher overload capacity; dry-type transformers are cleaner and safer for indoor use
- Compliance: Verify that the product meets IEC or IEEE standards and carries ISO9001 certification
- Vendor reputation: Reputable suppliers such as PINEELE, ABB, or Schneider provide better lifecycle support and documentation
Authoritative References
To ensure reliability and compliance, reference the following standards and sources:
- IEC 62271-202 – High-voltage switchgear and controlgear for prefabricated substations
- IEEE C37.20.1 – Standard for metal-enclosed switchgear
- IEEMA Handbook on Distribution Transformers – For Indian market relevance
- Whitepapers from ABB, Schneider Electric, and Siemens on modular substation technologies
- Wikipedia – Substation: General overview and global context
Frequently Asked Questions (FAQ)
Yes. Many units are designed with dual secondary windings or parallel transformers to support both medium- and low-voltage outputs.
Typically, manufacturing and delivery take 6–10 weeks, while installation on-site can be completed within 3–5 days, depending on foundation readiness.
Absolutely. Many solar PV farms use 33kV substations to step down voltage before feeding power into the grid. They are compatible with inverter and SCADA systems.
The 33kV compact substation guide is a reliable, efficient, and future-ready choice for modern electrical distribution needs. With its small footprint, robust design, and seamless integration capabilities, it serves industries, utilities, and infrastructure projects that demand speed, safety, and scalability. Backed by international standards and proven manufacturers, it stands out as a practical solution in today’s power-hungry world.
