Compact substations are a cornerstone of modern power distribution, especially in space-constrained environments. A 1000 kVA compact substation provides an ideal solution for medium-capacity applications, offering a compact, reliable, and easily deployable system that integrates a transformer, high-voltage and low-voltage switchgear, and protection devices into a single unit. This makes it highly suitable for urban infrastructures, industrial parks, and commercial developments.
Understanding the 1000 kVA Compact Substation
At its core, a 1000 kVA compact substation is a prefabricated modular unit designed to convert high-voltage electricity (typically 11kV or 33kV) into usable low-voltage output (commonly 0.4kV). It houses three primary components:
- High-voltage ring main unit (RMU) or switchgear
- Medium-voltage oil-immersed or dry-type transformer
- Low-voltage distribution board with circuit protection
All components are enclosed in a weatherproof, tamper-proof cabinet, ensuring operational safety, minimal maintenance, and ease of installation.
Application Areas
The 1000 kVA rating makes this compact substation a versatile option across sectors:
- Commercial buildings: Shopping malls, office parks, hotels
- Industrial sites: Medium-sized factories, processing facilities
- Infrastructure: Railways, airports, hospitals, data centers
- Utilities: Distribution nodes for municipal grids and rural electrification
This versatility comes from its ability to handle significant loads without occupying much space or requiring complex civil works.
Market Trends and Industry Context
As global energy consumption increases, there’s a growing emphasis on decentralized power systems and rapid deployment infrastructure. According to reports by the International Energy Agency (IEA) and IEEMA, compact substations are seeing steady growth in demand, especially in developing nations undergoing rapid urbanization.
In smart grid planning, compact substations support automation and remote monitoring. Their design also aligns with standards recommended by IEEE and IEC 62271-202, enhancing international acceptance.
Technical Specifications (Typical Values)
| Parameter | Value |
|---|---|
| Rated Power | 1000 kVA |
| Primary Voltage | 11kV / 22kV / 33kV |
| Secondary Voltage | 0.4kV |
| Cooling Method | Oil-immersed / Air-cooled |
| Protection Class | IP44 / IP54 |
| Frequency | 50 Hz / 60 Hz |
| Installation Type | Outdoor / Indoor |
| Standards | IEC, IEEE, GB/T |
Differences from Other Substation Types
Compared to traditional outdoor substations:
- Size: Significantly smaller footprint
- Installation: Quicker, less civil work required
- Safety: Enclosed design reduces human exposure to HV parts
- Mobility: Can be relocated when needed
- Integration: Seamless compatibility with automation and SCADA systems
Versus a 500 kVA unit, the 1000 kVA model supports double the load, making it better suited for medium-demand infrastructures with potential for future expansion.
Selection Guidance
When choosing a 1000 kVA compact substation, consider the following:
- Transformer type: Oil-immersed offers better overload capacity, dry-type provides environmental safety.
- Protection level: Match IP rating with site environment (e.g., dustproof or waterproof needed?).
- Voltage levels: Ensure compatibility with your primary distribution network (11kV or 33kV).
- Cooling requirements: Air-cooled units are suitable for clean environments; oil-cooled for higher performance.
- Manufacturer credentials: Choose suppliers compliant with ISO9001, IEC, or with references from utility companies like Schneider Electric, ABB, or Siemens.
Expert References and Industry Standards
To ensure product quality and regulatory compliance, always confirm that your compact substation adheres to:
- IEEE Std C37.20.1 – Standard for metal-enclosed switchgear
- IEC 62271-202 – High-voltage switchgear and controlgear – Part 202
- IEEMA Recommendations – Best practices for transformer-integrated solutions
- Case studies and white papers from ABB, Siemens, and Schneider Electric often serve as valuable references.
Frequently Asked Questions (FAQ)
A: With proper maintenance, a 1000 kVA compact substation can last 25–30 years. Oil-immersed units may require occasional oil testing and filtering.
A: Yes, it is well-suited for remote installations and can be paired with renewable energy sources like solar farms or diesel gensets.

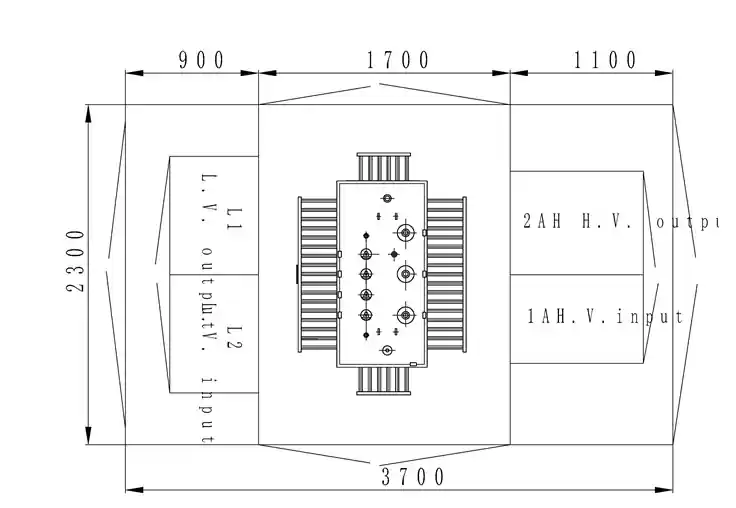

A: A typical footprint is around 3.5 x 2.5 meters, but this varies based on transformer type and enclosure configuration.
A 1000 kVA compact substation offers the perfect balance of power, efficiency, and space-saving design. Whether for industrial use or urban deployment, it provides a plug-and-play solution that reduces installation time, enhances operational safety, and future-proofs your distribution infrastructure. Backed by global standards and trusted manufacturers, it remains a smart investment in today’s energy landscape.
